Huawei UC Voice PABX Product Brochure

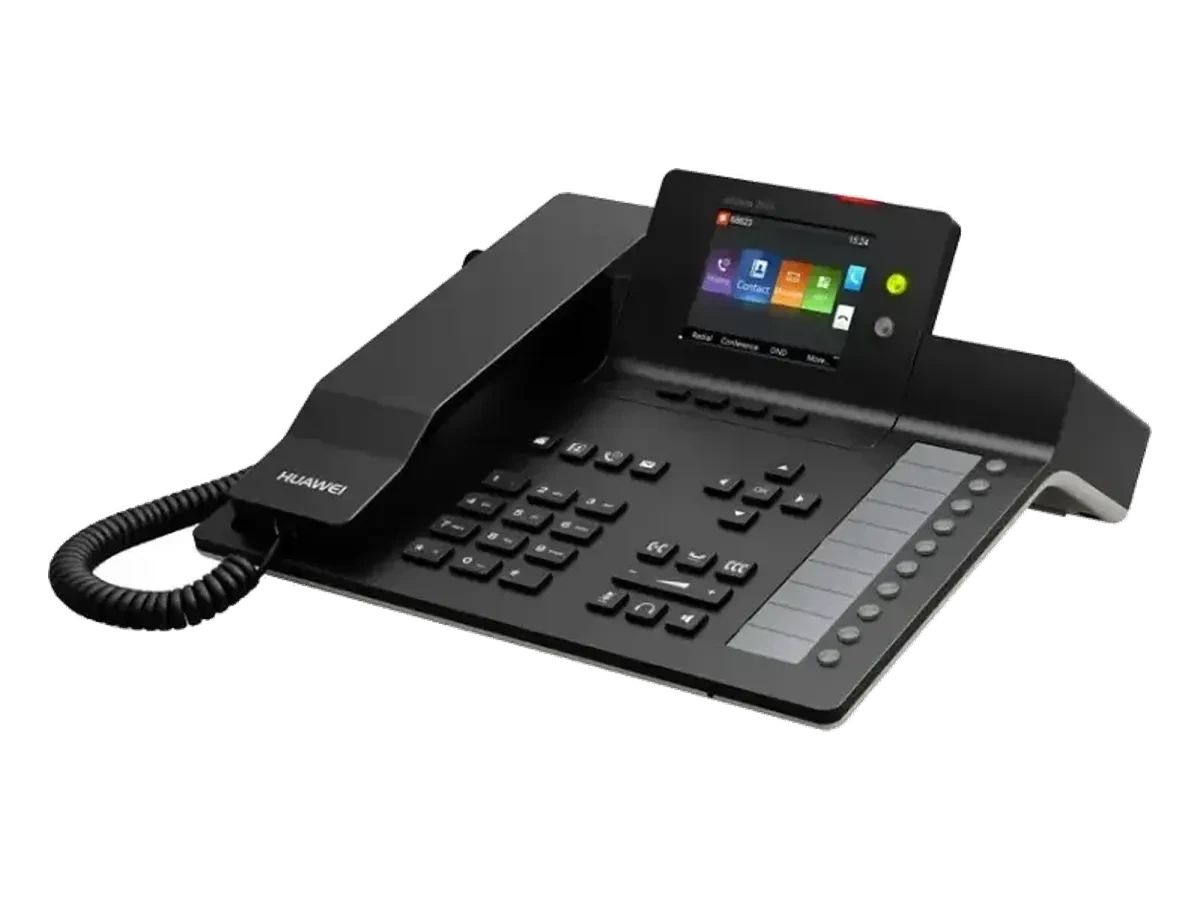

eSpace E7900

Name: 华为IP话机
Brand: Huawei
SKU: e7900

Huawei IP Phone

Product Details

Product Overview

The eSpace 7900 series is Huawei's next-generation desktop IP phone, featuring a slim and lightweight design with an adjustable base and an ergonomic handset for a clean, efficient office workspace.

The series of handsets provides a unified call log (up to 100 calls each for dialed, answered, and missed), 1,000 contacts, multi-language interface support, customizable ringtones and wallpapers, and integration with eSpace Desktop for call control and status synchronization.

Key Features

The thinnest IP phone, setting a new trend for sleek and stylish office workspaces
Crystal-clear full-band HD audio that brings every nuance of sound to life.
Ergonomically designed for a human-centric user experience
Gigabit Ethernet and color display—high-value IP phone

Technical Specifications (21Item

Audio Features: DTMF: Inband/RFC2 ACLP: Anti-pop AEC: Acoustic Echo Cancellation AGC: Automatic Gain Control AJB: Adaptive Jitter Buffer ANR: Automatic Noise Reduction CNG: Comfort Noise Generation HAC: Hearing Aid Compatibility PLC: Packet Loss Concealment VAD: Voice Activity Detection Sidetone Cancellation VQM: Voice Quality Monitoring Buzz Removal
Call History: 100 calls made, 100 received, and 100 missed. Missed call notifications are also supported.
Contact: 1000 entries, with support for contact search, import, and export
Multi-language: Supported languages: Simplified Chinese, Traditional Chinese, English, Portuguese, Spanish, French, Arabic. Input method support: Simplified Chinese, English, French, Portuguese, Spanish.
Ringtone Settings: Supports default ringtones (default 8 ringtones) and allows importing custom ringtones.
Wallpaper Settings: Supports default wallpapers (built-in 12 options) and allows importing custom wallpapers.
Local Meeting: Supports 6-party audio conferencing, displays participant status, and allows adding participants, muting, or removing them.
Enterprise Directory: Supports lookup, direct dialing, and adding to local contacts.
Name, Department: Display caller/callee name, department, phone number, and other details during incoming/outgoing calls.
Avatar display: Support displaying the counterpart's avatar during incoming and outgoing calls
Sync: Support call control and status synchronization via eSpace Desktop.
Call Recording: Support recording during audio calls. Recorded files are stored on the server; the phone supports starting and stopping recordings.
Status Display: Supports display of call logs, contacts, and corporate directory status.
One-click transfer: Users with business permissions can transfer active calls to their linked mobile or desk phone and reclaim them.
Join Meeting Now: The phone supports starting an instant meeting via the conference key.
Group Meeting: The phone supports selecting a contact group to initiate a conference, inviting all members of the group to join the voice conference.
Indicator light: Line indicator, MWI light, Mute indicator, Speaker indicator, Call log indicator, Headset indicator, Programmable key indicator
Angle Adjustment: 2 adjustable angles
Network Interface: Two GE ports, 10/100/100 0M port auto-negotiation, VLAN configurable
Controller port: RJ-9
Power Adapter: AC 100V–240V → DC 5V/2A
