eSpace 7950

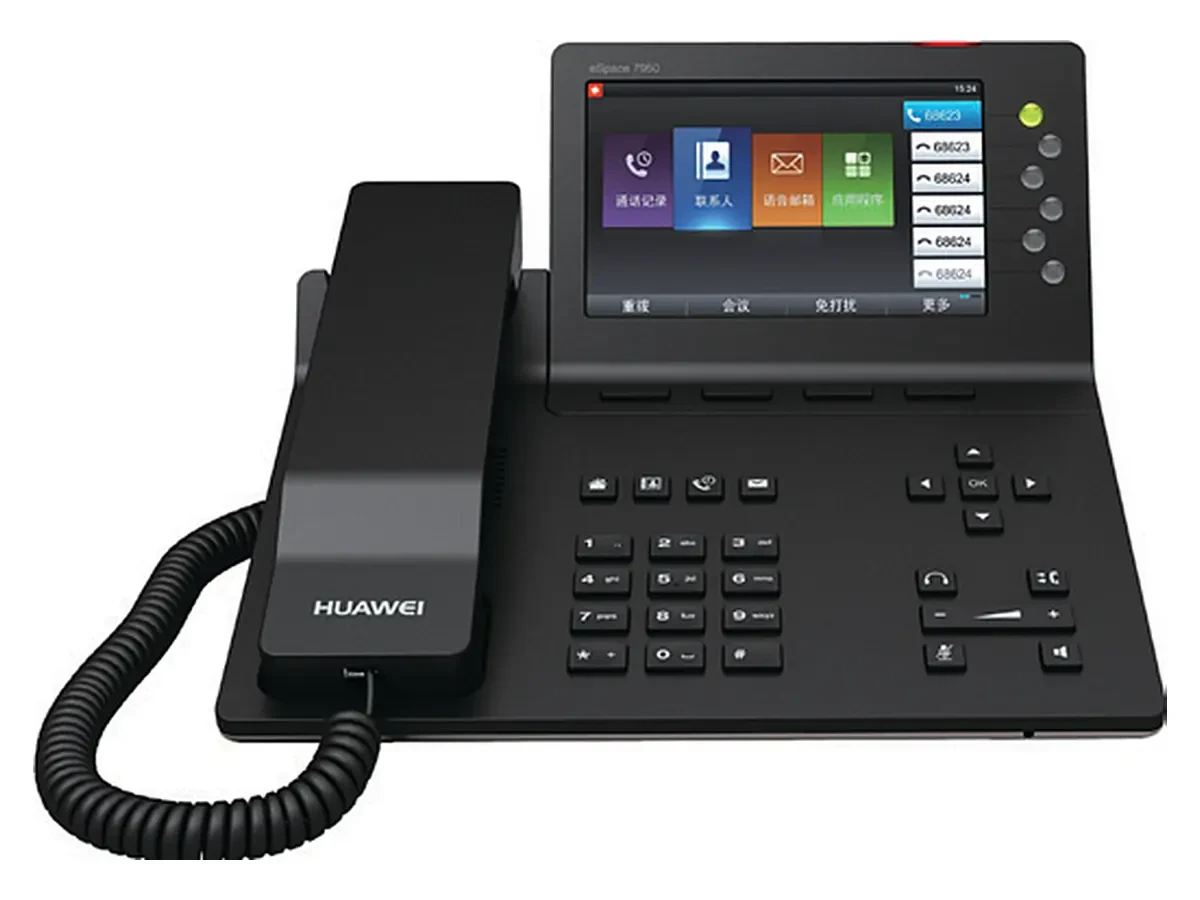

Huawei IP Phone eSpace 7950
Product Details
Product Overview
eSpace 7950 is a next-generation management IP phone designed for high-volume call environments. With 6 lines and a 5-inch 800×480 true-color display, it is ideal for executives, secretaries, and operators. The device features AAC-LD full-band audio encoding with support for up to 48kHz sampling rates. Both the speakerphone, handset, and headset deliver high-fidelity voice quality.
Deployment and security: Automatic deployment simplifies installation. Dual Gigabit ports support VLAN segmentation, PoE eliminates the need for separate power cabling, and USB 2.0 with built-in Bluetooth enable connection to peripherals like USB headsets. For additional keys, install the eSpace 7903X expansion panel. Signaling encryption, media stream encryption, and an HTTPS web management interface ensure communication security, while integration with eSpace Desktop, corporate contact lists, and presence status is supported.
Key Features
- 6 line calls + 5-inch 800×480 true-color display, with multi-line and contact status at a glance
- AAC-LD full-band voice codec supports sampling rates up to 48kHz; speakers, controllers, and headsets all support high-fidelity audio.
- Dual Gigabit ports with VLAN and PoE support for class3 power; USB 2.0 port for USB headsets and flash drives; built-in Bluetooth 2.1.
- Supports eSpace 7903X Expansion Board (PoE-powered: 1, max 3 daisy-chained via external power), with signaling and media stream encryption and HTTPS web management.
Technical Specifications (19Item
- Display
- 5 inches, 800×480 pixels, color display
- Lines
- 6 Line Keys, Supports 6-Way Conference
- Audio codec
- G.711a/μ, G.729AB, G.722, G.722.1, G.722.2, iLBC, AAC-LD
- Audio Features
- DTMF (Inband/Outband), ACLP Anti-pop, AEC Echo Cancellation, AGC, AJB, ANR, CNG, HAC Hearing Aid Compatibility, PLC Packet Loss Concealment, VAD, Sidetone Cancellation, VQM Voice Quality Monitoring
- Network Protocol
- TCP/IP, SIP, SDP, UDP, RTP, RTCP, DHCP, DNS, PPPoE, HTTP, HTTPS, SNTP, XCAP
- External Interface
- 2 GE ports (10/100/1000 Mbps adaptive, VLAN configurable), 1 RJ-9 handle ports, 1 RJ-9 headset ports
- USB
- 1 USB 2.0, supports USB headsets; USB drive can import ringtones, wallpapers, and contacts
- Bluetooth
- Built-in Bluetooth 2.1
- Expansion Board
- eSpace 7903X: Supports 1 PoE ports; up to 3 daisy-chained external power units
- Contact
- Max 1000 entries; supports USB/Web import, CSV/VCF export
- Call History
- 100 calls dialed, 100 received, 100 missed. Missed call notifications supported.
- Local Meeting
- Supports 6-way audio conferencing; add, mute, or remove participants.
- Power
- PoE class3; Power adapter input AC 100V~240V, output DC 5V/2A
- Storage
- Flash 128MB, RAM 128MB
- Size
- 217mm × 208mm × 124mm
- Weight
- Approximately 0.9kg
- Power Consumption
- About 60K
- Work Environment
- Operating temperature: 0℃~45℃, Operating humidity: 10%~95%
- Verify
- CE / FCC / RoHS / WEEE / REACH / UL
