Huawei UC Voice PABX Product Brochure

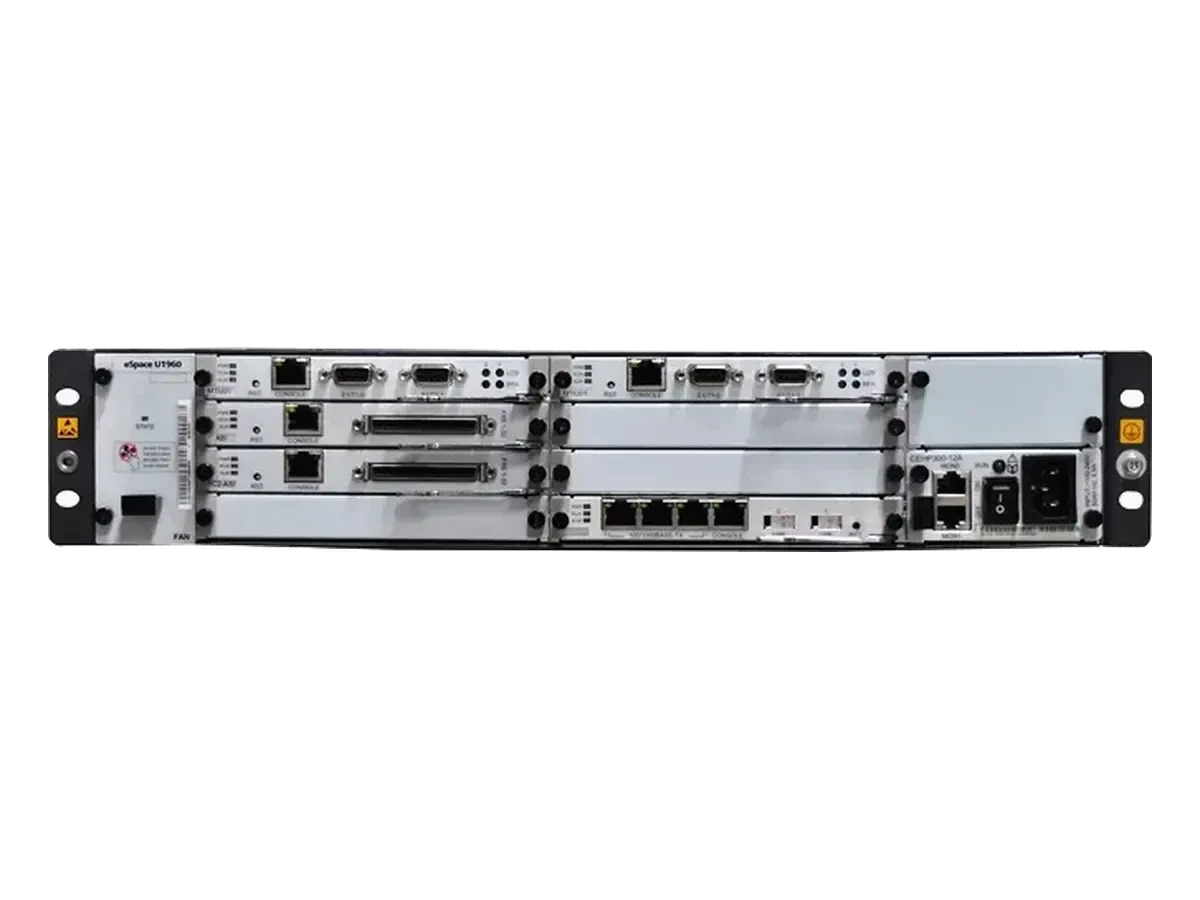

eSpace U1960
Huawei IP PBX
Product Details
Product Overview
eSpace U1960 is designed for enterprises with up to 1,000 users. Each unit supports 1,000 IP users and up to 192 local analog users, simultaneously accommodating analog phones, IP phones, video phones, and soft clients.
The device supports up to 72 FXO ports and 14 E1/T1 trunk interfaces, with PRI, QSIG, SS7, R2, and SIP signaling. Ideal for unified access at midsize enterprise headquarters, it extends connectivity to branch offices via IP trunks.
Key Features
- Built-in high-fidelity voice conferencing with support for multiple meeting modes
- Supports One Number: Answer important calls anytime, anywhere.
- Built-in voicemail service – never miss a call
- Built-in auto attendant to showcase your corporate image and enhance brand value.
Technical Specifications (14Item
- Single-user capacity
- 1,000 (Max 1,000 IP users / 192 local simulated users)
- Device Type
- Simulated Phone, IP Phone, Video Phone, Soft Client
- Trunk Interface
- Up to 72 FXO ports, 14E1/T1 interfaces
- Signaling Protocol
- E1/PRI, E1/QSIG, E1/SS7, E1/R2, T1/PRI, T1/QSIG, SIP
- Codec
- G.711a/μ, G.729a/b/ab, iLBC, G.722/G.722.1/G.722.2
- Number of Conference Channels
- Maximum 360 participants, up to 120 meeting rooms, and up to 60 participants per room.
- Voice mail concurrent channels
- Supports up to 30 concurrent built-in voicemail channels
- Power
- AC: 100V～240V; 50Hz/60Hz DC: -38.4V to -60V, typical -48V. Supports dual power modules with 1+1 redundancy.
- Power Consumption
- 220W (Fully Configured)
- Dimensions (W x D x H)
- Standard 19-inch 2U chassis: 442mm x 310mm x 86.1mm
- Weight
- 10kg (fully configured)
- Environmental Metrics
- Temperature: Storage temperature: -40℃ to 70℃; Operating temperature (long-term): 0℃ to 45℃; Operating temperature (short-term): -5℃ to 55℃. Humidity: Operating humidity: 5% to 95% RH, non-condensing. Dust protection: The working environment must be dust-free with particulate concentration below 180 mg/m³.
- System Reliability
- 99.995%
- Maintainability
- Supports remote maintenance, automated inspections, log collection, and daylight saving time.
