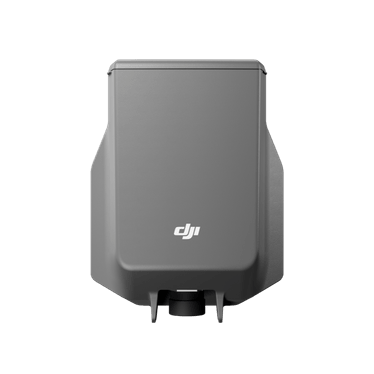

DJI AP100 Parachute
Parachute compatible with Matrice 400, weighing approximately 935 grams. Features independent power supply and full-link redundancy for automatic or manual deployment. Stops motors and deploys chute within 600 ms to reduce ground risk during flight anomalies.
Core Specifications
Size
Length: 182 mm, Width: 171 mm, Height: 157 mm (with stand)
Weight
Approx. 935 g (with mount)
Maximum Takeoff Weight
15.8 kg
Operating Temperature
-20°C to 50°C
Work Altitude
0 to 4500 meters
Protection Rating
IP55: Please adhere to the requirements outlined in the IP55 protection rating guidelines. Ratings are measured under controlled conditions and are not permanent; protection may diminish due to product wear.
Product Video Introduction
Video sourced from the official DJI product page for reference.DJI AP100 Parachuteappearance and core functionality
* The video is an official DJI product video for reference on product form and features; actual configuration and pricing are subject to inquiry results.
Full Specifications
| Size | Length: 182 mm, Width: 171 mm, Height: 157 mm (including stand) |
| Weight | Approx. 935 grams (including mount) |
| Maximum takeoff weight | 15.8 kg |
| Operating Temperature | -20°C to 50°C |
| Operating altitude | 0 to 4500 meters |
| Protection Rating | IP55 Please adhere to the requirements specified in the IP55 protection level guidelines. Ratings are measured under controlled conditions and are not permanent; protection may degrade due to product wear. |
| Effective deployment altitude | ≥ 30 m. Effective deployment altitude is the minimum vertical height required for the parachute to deploy and reduce the vehicle's descent rate to 5 m/s. If deployment occurs below 30 m, the parachute may fail to fully open or slow the vehicle effectively, and in some cases may not deploy automatically, requiring manual activation. Please prioritize flight safety. For specific features and activation conditions, visit our product page on the official website. |
| Automatic deployment reaction time | With the DJI Matrice 400 in hover RPM, record the complete time interval from triggering the Flight Termination System (FTS) signal and confirming that the propellers have fully stopped rotating to the activation of the gas generator's electrical signal. |
| Canopy Material | Nylon |
| Manual deployment | Supports manual parachute deployment via app and flight termination system. |
| Auto-deploy | Supports automatic parachute deployment triggered by flight anomalies and geocaging. If the aircraft's attitude or speed becomes abnormal, the parachute will automatically deploy. To reduce the risk of damage to nearby equipment or property from low-altitude parachute deployment, the system will not trigger automatic deployment if either of the following conditions is met when an anomaly occurs: A. The aircraft is within 10 meters of the Return-to-Home (RTH) point and its altitude is within ±15 meters of the RTH point. B. After cleaning mode is enabled, the aircraft is within 10 meters of the RTH point and its altitude is within +15 meters above the RTH point. |
| Featured Features · Self-Check | Continuously monitors the gas generator status and communication link, triggering alerts via the Health Management System (HMS) interface in DJI Pilot 2. |
| Key Features · Independent FTS Link | Independent control of flight path and blade stop path |
* Specifications are sourced from DJI's official product page; actual configurations may vary by factory. Prices are subject to inquiry.
Download Product Brochure
Below isDJI AP100 ParachuteProduct Brochure Preview: Click the button to generate and download a PDF version for internal review and selection archiving.
Huaying Technology Co., Ltd. · Product Brochure
DJI AP100 Parachute
Accessories· Authorized DJI distributor supply
Parachute compatible with Matrice 400, weighing approximately 935 grams. Features independent power supply and full-link redundancy for automatic or manual deployment, completing motor stop and chute opening within 600 milliseconds to reduce ground risk during flight anomalies.
| Size | Length: 182 mm, Width: 171 mm, Height: 157 mm (including stand) |
| Weight | Approx. 935 grams (with stent) |
| Maximum takeoff weight | 15.8 kg |
| Operating Temperature | -20°C to 50°C |
| Work altitude | 0 to 4500 meters |
| Protection Rating | IP55 Please adhere to the requirements outlined in the IP55 protection rating specifications. Ratings are measured under controlled conditions and are not permanent; protection may degrade due to product wear. |
| Effective deployment altitude | ≥ 30 meters: Effective deployment altitude is the minimum vertical height required for the parachute to fully deploy and reduce the vehicle's descent rate to 5 m/s. If the deployment altitude is below 30 meters, the parachute may fail to fully open or slow the descent, and in some cases may not deploy automatically, requiring manual activation. Please prioritize flight safety; see the official product page for specific features and activation conditions. |
| Automatic canopy deployment response time | With the DJI Matrice 400 in hover mode, record the complete time interval from when the Flight Termination System (FTS) signal is triggered and propeller stoppage is confirmed to when the gas generator trigger signal is sent. |
| Canopy material | Nylon |
| Manual Parachute Deployment | Supports manual canopy deployment via the App and system-initiated deployment for flight termination. |
| Auto-deploy | Supports automatic parachute deployment triggered by flight anomalies or geocaging. If the aircraft's attitude or speed becomes abnormal, the parachute will deploy automatically. To minimize the risk of damage to nearby equipment or property caused by close-range parachute deployment, the aircraft will not deploy the parachute automatically if any of the following conditions are met when its attitude or speed is abnormal: A. The aircraft is within 10 meters of the Return-to-Home (RTH) point and at an altitude within 15 meters above or below the RTH point. B. After cleaning mode is enabled, the aircraft is within 10 meters of the RTH point and at an altitude within 15 meters above the RTH point. |
| Key Features · Self-Check | Continuously monitors the gas generator status and communication link, and displays alerts via the DJI Pilot 2 Health Management System (HMS) interface. |
| Key Features · Independent FTS Link | Independent control of flight link and propeller stop link |
