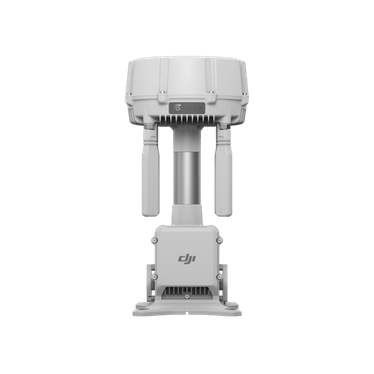

DJI O4 Ground Station
Industry-grade ground station integrates a 12-element omnidirectional antenna array with high-performance RF components, supporting multi-band intelligent switching. New gateway mode enables direct connection to DJI SkyPort 2; relay mode covers network-blind areas and supports 24/7 unattended operation.
Core Specifications
Satellite Receive Frequency
GPS: L1C/A, L2C, L5
BDS: B1I, B2I, B3I, B1C, B2a, B2b
Galileo: E1, E5a, E5b, E6
GLONASS: L1, L2
QZSS: L1C/A, L2C, L5
L-Band
System Precision
Single-point (uncalibrated): Horizontal: 1.5 m (RMS), Vertical: 3.0 m (RMS)
SBAS: Convergence time: 20 min; Horizontal: 30 cm (RMS), Vertical: 40 cm (RMS)
Network RTK (calibrated): Horizontal: 1.0 cm (RMS) + 1 ppm, Vertical: 3.0 cm (RMS) + 1 ppm
Accuracy depends on multiple factors. These values were measured under ideal conditions: open sky, good satellite geometry, low ionospheric activity, no electromagnetic interference, and minimal multipath effects.
Video Transmission · Video Transmission Solutions
DJI O4 Transmission Industry Enhanced Edition
Video Transmission · Operating Frequency and Transmit Power (EIRP)
902 MHz to 928 MHz: <30 dBm (IC), <16 dBm (MIC) 2.400 GHz to 2.4835 GHz: <33 dBm (IC), <20 dBm (CE/SRRC/MIC) 5.150 GHz to 5.250 GHz: <23 dBm (IC/CE) 5.725 GHz to 5.850 GHz: <33 dBm (IC), <14 dBm (CE), <30 dBm (SRRC) Supported operating bands and their corresponding available ranges vary by country or region. Please refer to local laws and regulations for details.
Video Transmission · Maximum Signal Range (No Interference, No Obstructions)
IC 1. O4 Ground Station to DJI Matrice 5TD (with DJI Dock 4) / Matrice 400: 40 km 2. O4 Ground Station to other aircraft: 30 km 3. O4 Ground Station (Relay Mode) to Remote Controller / DJI Dock 4 / DJI Dock 3: Recommended deployment within 1 km; up to 3 km in open, interference-free conditions. SRRC 1. O4 Ground Station to DJI Matrice 5TD (with DJI Dock 4) / Matrice 400: 25 km 2. O4 Ground Station to other aircraft: 18 km 3. O4 Ground Station (Relay Mode) to Remote Controller / DJI Dock 4 / DJI Dock 3: Recommended deployment within 1 km; up to 3 km in open, interference-free conditions. CE 1. O4 Ground Station to DJI Matrice 5TD (with DJI Dock 4) / Matrice 400: 25 km 2. O4 Ground Station to other aircraft: 18 km 3. O4 Ground Station (Relay Mode) to Remote Controller / DJI Dock 4 / DJI Dock 3: Recommended deployment within 300 m; up to 1 km in open, interference-free conditions. Data obtained outdoors in open, interference-free environments. These represent the maximum one-way communication distances without return-to-home under each standard. Please monitor RTH prompts in the app during actual flights. DJI Matrice 400 is supported only when using DJI O4 Ground Station in Relay Mode. "Other aircraft" refers to DJI Matrice 4D/4TD (with DJI Dock 3) in Gateway Mode. In Relay Mode, it includes Matrice 4E, Matrice 4T, Matrice 4D/4TD with DJI Dock 3, and Matrice 4D/4TD with DJI Dock 3 (DJI RC Plus 2 Enterprise Edition).
Video Transmission · Maximum Signal Range (with interference, no obstruction)
Strong interference (dense buildings, residential areas, etc.): approximately 1.8 to 6 km
Moderate interference (suburbs, county towns, urban parks, etc.): approximately 6 to 18 km
Weak interference (remote wilderness, open farmland, etc.): approximately 18 to 40 km and above
Product Video Introduction
Video sourced from the official DJI product page for reference.DJI O4 Ground Stationappearance and core functionality
* The video is an official DJI product video for reference on product form and features; actual configuration and pricing are subject to inquiry results.
Full Specifications
| Satellite Receive Frequency | GPS: L1C/A, L2C, L5 BDS: B1I, B2I, B3I, B1C, B2a, B2b Galileo: E1, E5a, E5b, E6 GLONASS: L1, L2 QZSS: L1C/A, L2C, L5 L-Band |
| System Precision | Single-point (uncalibrated): Horizontal: 1.5 m (RMS), Vertical: 3.0 m (RMS) SBAS: Convergence time: 20 min; Horizontal: 30 cm (RMS), Vertical: 40 cm (RMS) Network RTK (calibrated): Horizontal: 1.0 cm (RMS) + 1 ppm, Vertical: 3.0 cm (RMS) + 1 ppm Accuracy depends on multiple factors. These values were measured under ideal conditions: open sky, good satellite geometry, low ionospheric activity, no electromagnetic interference, and minimal multipath effects. |
| Video Transmission · Video Transmission Solutions | DJI O4 Video Transmission Industry Enhanced Edition |
| Video Transmission · Operating Frequency and Transmit Power (EIRP) | 902 MHz to 928 MHz: <30 dBm (IC), <16 dBm (MIC) 2.400 GHz to 2.4835 GHz: <33 dBm (IC), <20 dBm (CE/SRRC/MIC) 5.150 GHz to 5.250 GHz: <23 dBm (IC/CE) 5.725 GHz to 5.850 GHz: <33 dBm (IC), <14 dBm (CE), <30 dBm (SRRC) Supported operating frequency bands and their corresponding available ranges vary by country or region. For details, please refer to local laws and regulations. |
| Video Transmission · Maximum Signal Range (No Interference, No Obstructions) | IC 1. O4 Ground Station to DJI Matrice 5TD (with DJI Dock 4) / Matrice 400: 40 km 2. O4 Ground Station to other aircraft: 30 km 3. O4 Ground Station (Relay Mode) to Remote Controller / DJI Dock 4 / DJI Dock 3: Recommended deployment within 1 km; up to 3 km in unobstructed, interference-free conditions. SRRC 1. O4 Ground Station to DJI Matrice 5TD (with DJI Dock 4) / Matrice 400: 25 km 2. O4 Ground Station to other aircraft: 18 km 3. O4 Ground Station (Relay Mode) to Remote Controller / DJI Dock 4 / DJI Dock 3: Recommended deployment within 1 km; up to 3 km in unobstructed, interference-free conditions. CE 1. O4 Ground Station to DJI Matrice 5TD (with DJI Dock 4) / Matrice 400: 25 km 2. O4 Ground Station to other aircraft: 18 km 3. O4 Ground Station (Relay Mode) to Remote Controller / DJI Dock 4 / DJI Dock 3: Recommended deployment within 300 m; up to 1 km in unobstructed, interference-free conditions. These values were measured in open outdoor environments without interference and represent the maximum one-way communication range during non-return-to-home flights under each standard. Please monitor return-to-home prompts in the app during actual flights. DJI Matrice 400 is supported only when the DJI O4 Ground Station operates in Relay Mode. "Other aircraft" refers to DJI Matrice 4D/4TD (with DJI Dock 3) in Gateway Mode, and includes Matrice 4E, Matrice 4T, Matrice 4D/4TD (with DJI Dock 3), and Matrice 4D/4TD (with DJI Dock 3, DJI RC Plus 2 Enterprise Edition) in Relay Mode. |
| Video Transmission · Maximum Signal Range (with interference, no obstruction) | Strong interference (dense buildings, residential areas, etc.): approximately 1.8 to 6 km Moderate interference (suburbs, county towns, urban parks, etc.): approximately 6 to 18 km Weak interference (remote wilderness, open farmland, etc.): approximately 18 to 40 km and above |
| Video Transmission · Maximum Effective Range (with interference and obstructions) | Minor interference, blocked by buildings: approximately 0 to 0.5 km Minor interference, blocked by foliage: approximately 0.5 to 3 km and above |
| Video Transmission · Antenna | OcuSync 4 Pro External Directional Antenna × 4, OcuSync 4 Pro Internal Directional Antenna × 8.4G/5.2G/5.8G: 2 TX 4 RX, Sub2G: 2 TX 2 RX. Antennas use standard reverse-polarity SMA connectors. |
| Video Transmission · Network Access | Ethernet Access: Adaptive Ethernet port; network bandwidth must be 100Mbps or higher, and latency must not exceed 100 ms. 4G Access: Requires DJI Enhanced Video Transmission Module. If requirements are not met, devices may go offline or live streams may stutter. |
| Electrical Specifications · Power Interface | Ethernet Port (PoE) WAN: PoE Power Input (PoE-in) LAN: PoE Power Input (PoE-in) |
| Electrical Characteristics · Ethernet Cable Requirements | Use Cat 6 or higher outdoor-rated waterproof twisted-pair cable. Length must be within 100 meters, with an outer diameter between 5.5 and 6.5 millimeters. |
| Electrical Characteristics · System Power Consumption | Gateway Mode: 1. Max Power Consumption (with low-temp heating): 65 W 2. Typical Power Consumption (non-heating mode): 17.1 W 3. Low-Power Mode: 7 W Repeater Mode: 1. Max Power Consumption (with low-temp heating): 65 W 2. Typical Power Consumption (non-heating mode): - With DJI Dock 3/DJI Matrice 4 series: 31.7 W - With DJI Dock 4/DJI Matrice 400: 37.9 W 3. Idle Power Consumption (no aircraft connected): - With DJI Dock 3/DJI Matrice 4 series: 29.7 W - With DJI Dock 4/DJI Matrice 400: 30.6 W Data measured in controlled test environments. Actual power consumption may be higher due to losses from the power supply equipment. |
| Electrical Characteristics · Power Support | 1. DJI Dock 4 and DJI Dock 3: PoE output port 2. Third-party PoE power supply: IEEE 802.3bt Type 4 (PoE++), output voltage 52 to 57 V, max single-port output power 99.9 W, operating temperature range -40°C to 55°C. IEEE 802.3bt Type 3 (PoE++), output voltage 50 to 57 V, max single-port output power 60 W, operating temperature range -30°C to 55°C. IEEE 802.3at Type 2 (PoE+), output voltage 50 to 57 V, max single-port output power 30 W, operating temperature range -20°C to 55°C. Non-standard PoE or Type 1 is not supported for powering the device; the indicator light will remain solid red. Type 2 supports gateway mode only and is not supported in relay mode. |
| Electrical Specifications · Backup Battery | Type: Lithium-ion Battery | Capacity: 3250 mAh | Energy: 23.4 Wh |
| Electrical Characteristics · Standby Battery Runtime (Room Temperature) | When powered via PoE, power-saving mode is enabled by default. Estimated battery backup duration during sudden power loss: Gateway mode: ~45 minutes Repeater mode: ~30 minutes How power-saving mode works: When using PoE power, the system maintains battery voltage between 7.0 V and 7.4 V. If the initial battery voltage exceeds 7.5 V, the system will first discharge the battery down to this safe threshold before entering power-saving mode, avoiding a full charge. In low-temperature environments, battery discharge performance may decrease, resulting in shorter actual backup times. |
| Electrical Characteristics · Backup Battery Charging | Supports 9V or 12V PD charging. We recommend using the DJI 65W portable charger to top up power before deployment. In gateway mode, battery life is approximately 2 hours with a full charge. 65W PD charging time: 2.5 hours. If using a 5V charger, charging is only supported when the device is powered off. The allowable charging cell temperature range is 0°C to 55°C. |
| Electrical Specifications · Tested PoE Power Supply | See the download page on our official website. |
| Physical Characteristics · Port Surge Protection | WAN/LAN Port: The Ethernet interface supports surge protection up to 10kA (total current capacity), meeting Category C protection per EN/IEC 61643-21. RJ45 ports offer lightning protection of 1.5kA (8/20μs waveform), complying with EN/IEC 61643-21 Category C standards. Lightning protection performance depends on ground resistance and grounding reliability. To minimize lightning strike risk, ensure proper grounding during installation. |
| Physical Specifications · Operating Temperature | Use IEEE 802.3bt Type 4 (PoE++) power supply: -40°C to 55°C. Use IEEE 802.3bt Type 3 (PoE++) power supply: -30°C to 55°C. Use IEEE 802.3at Type 2 (PoE+) power supply: -20°C to 55°C. The 55°C upper operating limit includes solar radiation effects. The -40°C lower limit assumes a no-wind environment; self-starting after shutdown is not possible in windy conditions. For low-temperature heating startup, connect to an IEEE 802.3bt Type 3 (PoE++) or higher PoE power source. After storage or operation at extreme temperatures, wait for the device's internal backup battery temperature to stabilize between 0°C and 45°C before charging. |
| Physical Features · PoE Auto-Wake | Connect to Type 2 or higher PoE power supply. The device automatically wakes up when inserted or powered on. |
| Physical Properties · Low-Temperature Heating Start | With a standard PoE power supply of 60 watts or more, the unit can start up with low-temperature heating in environments ranging from -40°C to -20°C. Low-temperature startup requires connection to an IEEE 802.3bt Type 3 (PoE++) or higher PoE power source. |
| Physical Characteristics · Altitude | 6000 meters |
| Physical Properties · Protection Performance | IP67. Follow the requirements described in IP67 protection level specifications. Tested under controlled conditions; the protection rating is not permanent and may degrade due to product wear. When connecting Ethernet cables, use the included port connector (corrugated conduit and end caps). Use outdoor waterproof Cat 6 or higher twisted-pair cable with an outer diameter of 5.5 mm to 6.5 mm. Ensure all rubber plugs on the device body and the DJI Enhanced Transmission Module heat dissipation plate are properly installed, and tighten the screws for unused WAN/LAN ports. |
| Physical Properties · Impact Resistance | IK7 |
| Physical Characteristics · Dimensions | Length: 170 mm, Width: 170 mm, Height: 352 mm |
| Physical Properties · Weight | 2.68 kg |
| Physical Characteristics · Installation Method | φ6×70 mm expansion bolt with M6 screw: 60 mm hole spacing |
| Software Support · Applications | DJI Enterprise App (for deploying and debugging DJI O4 Ground Station with Android phones) |
| Software Support · Cloud Platform | Sikong 2 Public Cloud | Sikong 2 Private Edition | Sikong 2 Cloud Interconnect | Third-party cloud platform developed based on the Sikong Cloud API |
| Software Support · Peripheral Connectivity | Supports ONVIF and GB/T 28181 standard protocol camera integration; supports up to 4 channels of H.264 high-definition video streams at 1080p resolution. |
| Software Support · Open Ecosystem | ESDK 2.0 |
* Specifications are sourced from DJI's official product page; actual configurations may vary by factory. Prices are subject to inquiry.
