Load SeriesLoad Series

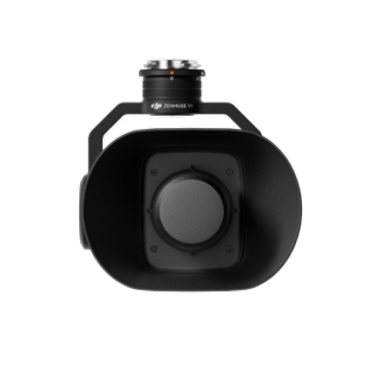

Zenmuse V1
Heavy-duty loudspeaker payload for large industrial drones. Delivers high-volume, long-range audio with real-time voice broadcasting, text-to-speech, and audio file playback modes. Ideal for public safety and emergency response operations.
Core Specifications
Product Name
Zenmuse V1
Weight
690±10 g
Size
Length: 134 mm, Width: 119 mm, Height: 140 mm
Rated Power
30 Watts
Supported Models
Matrice 400 Matrice 350 RTK Matrice 300 RTK (requires DJI RC Plus)
Hot casing
< 50°C (plastic housing)
Product Video Introduction
Video sourced from the official DJI product page for reference.Zenmuse V1appearance and core functionality
* The video is an official DJI product video for reference on product form and features; actual configuration and pricing are subject to inquiry results.
Full Specifications
| Product Name | Zenmuse V1 |
| Weight | 690±10 g |
| Size | Length: 134 mm, Width: 119 mm, Height: 140 mm |
| Rated Power | 30 watts |
| Supported Models | Matrice 400 Matrice 350 RTK Matrice 300 RTK (Requires DJI RC Plus) |
| Hot casing | < 50°C (plastic housing) |
| Protection Rating | IP54 achieves an IP54 rating under IEC 60529 standards in controlled laboratory conditions. Protection ratings are not permanent; performance may degrade due to product wear. |
| Environmental Parameters · Operating Temperature | -20°C to 50°C |
| Environment Parameters · Storage Temperature | -20°C to 60°C |
| Gimbal Parameters · Stabilization System | Single-axis (pitch) |
| Gimbal Parameters · Angle Jitter | Hover: ±0.01° | Flight: ±0.02° |
| Pan/Tilt Parameters · Mounting Method | DJI SkyPort Quick-Release |
| Gimbal Parameters · Mechanical Angle Range | Pitch: -125° to +25°, structural limit (not a soft control limit) |
| Pan Parameters · Controllable Rotation Range | Matrice 400: Under-mounted single gimbal / Under-mounted dual gimbal: -120° to -5°; Belly-mounted third gimbal: -60° to 0°. Matrice 300 RTK / Matrice 350 RTK: Under-mounted single gimbal / Under-mounted dual gimbal: -120° to -5°; Top-mounted single gimbal: -5° to +120°. |
| Gimbal Parameters · Working Mode | Follow, Free, Center |
| Speaker Specifications · Impedance | 4 ohm |
| Speaker Specifications · Rated Power | 25 watts |
| Speaker Specifications · Effective Transmission Range | 700 meters (Matrice 400) 500 meters (Matrice 350 RTK / Matrice 300 RTK) This |
| Speaker Specifications · Maximum Sound Pressure Level | 129 dB @ 1 m (Matrice 400) 127 dB @ 1 m (Matrice 350 RTK / Matrice 300 RTK) |
| Speaker Specs · Effective Frequency Range | 800 Hz to 8 kHz |
| Basic Features · PA Announcements | Recorded PA Real-time PA (Matrice 400 only) |
| Core Features · Text Broadcast | Convert text to speech, play, and save. Matrice 400 supports Chinese, English, Spanish, Korean, Japanese, and French. Matrice 350 RTK / Matrice 300 RTK support Chinese and English. |
| Core Features · File Playback | Import and play local audio files in MP3, AAC, and WAV formats. When used with the Matrice 400, playback starts during file upload. |
| Basic Features · Playback Controls | Start / Stop Recording / Loop Playback / Volume Control |
| Basic Features · Key Mapping | Support mapping for start/stop recording and audio playback |
| Basic Features · PTZ Linkage | Supports linked control with other PTZ-type payloads |
| Featured Feature · Smart Volume Adjustment | When used with the Matrice 400, automatically applies gain to audio recordings and files. |
| Key Features · Directional Audio Capture | The remote supports directional voice pickup and environmental noise cancellation. |
| Key Features · Load Protection | Speaker temperature protection, overcurrent protection, and power protection to prevent damage. |
| Featured Features · Targeted Broadcasting | Supports displaying the loudspeaker's orientation via AR projection in the DJI Pilot 2 app. |
* Specifications are sourced from DJI's official product page; actual configurations may vary by factory. Prices are subject to inquiry.
Download Product Brochure
Below isZenmuse V1Product Brochure Preview: Click the button to generate and download a PDF version for internal review and selection archiving.
Huaying Technology Co., Ltd. · Product Brochure
Zenmuse V1
Load Series· Authorized DJI distributor supply
High-load speaker system for large-scale industry drones. Delivers high-volume, long-range audio with real-time voice broadcast, text-to-speech, and pre-recorded audio playback modes. Ideal for public safety and emergency response operations.
| Product Name | Zenmuse V1 |
| Weight | 690 ± 10 g |
| Size | Length: 134 mm, Width: 119 mm, Height: 140 mm |
| Rated Power | 30 W |
| Supported Models | Matrice 400 Matrice 350 RTK Matrice 300 RTK (requires DJI RC Plus) |
| Hot to the touch | < 50°C (plastic housing) |
| Protection Rating | IP54 achieves an IP54 rating under IEC 60529 standards in controlled laboratory conditions. Protection ratings are not permanent; performance may degrade due to product wear. |
| Environmental Parameters · Operating Temperature | -20°C to 50°C |
| Environment Parameters · Storage Temperature | -20°C to 60°C |
| Gimbal Parameters · Stabilization System | Single-axis (pitch) |
| Gimbal Parameters · Angle Jitter | Hover: ±0.01° Flight: ±0.02° |
| Pan-Tilt Parameters · Mounting Method | DJI SkyPort Quick-Release |
| Gimbal Parameters · Mechanical Angle Range | Pitch: -125° to +25°, structural limit (not a soft control limit) |
| Pan Tilt Parameters · Controllable Rotation Range | Matrice 400: Lower single gimbal / Lower dual gimbal: -120° to -5°; Belly third gimbal: -60° to 0°. Matrice 300 RTK / Matrice 350 RTK: Lower single gimbal / Lower dual gimbal: -120° to -5°; Upper single gimbal: -5° to +120°. |
| Gimbal Parameters · Working Mode | Follow, Free, Center |
| Speaker Specs · Impedance | 4 Ohm |
| Speaker Specs · Rated Power | 25 W |
| Speaker Specifications · Effective Range | 700 meters (Matrice 400) 500 meters (Matrice 350 RTK / Matrice 300 RTK) |
| Speaker Specifications · Maximum Sound Pressure Level | 129 dB @ 1 m (Matrice 400) 127 dB @ 1 m (Matrice 350 RTK / Matrice 300 RTK) This |
| Speaker Specifications · Effective Frequency Range | 800 Hz to 8 kHz |
| Basic Features · PA Announcements | Recorded PA & Live PA (Matrice 400 only) |
| Basic Features · Text Broadcast | Text-to-speech playback and save. Matrice 400 supports Chinese, English, Spanish, Korean, Japanese, and French. Matrice 350 RTK / Matrice 300 RTK support Chinese and English. |
| Basic Features · File Playback | Import and play local audio files. Supports MP3, AAC, and WAV formats. When used with the Matrice 400, playback begins during file upload. |
| Basic Features · Playback Controls | Start / Stop Recording / Loop Playback / Volume Control |
| Basic Features · Key Mapping | Support mapping for start/stop recording and audio playback |
| Basic Features · PTZ Linkage | Supports linked control with other PTZ-type payloads. |
| Key Features · Smart Volume Adjustment | When used with Matrice 400, supports automatic gain control for audio recordings and files. |
| Key Feature · Directional Pickup | The remote supports directional voice pickup and environmental noise cancellation. |
| Key Features · Load Protection | Speaker temperature protection, overcurrent protection, and power protection to prevent damage. |
| Featured Feature · Targeted Broadcasting | Supports displaying the loudspeaker's orientation via AR projection in the DJI Pilot 2 app. |
