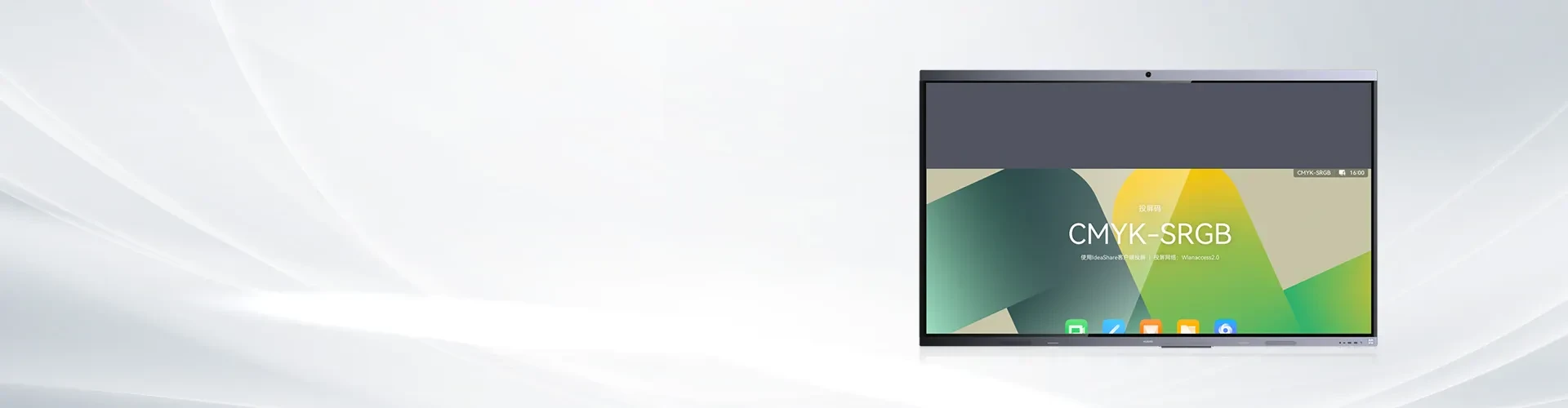

Huawei IdeaHub Board 3
Next-Generation Huawei Meeting Board
Powered by HarmonyOS, it delivers 1080P HD cloud conferencing with standout features like distributed meetings and P2P screen sharing. Ideal for standard meeting rooms, open discussion areas, and smart classrooms.
- Model
- IdeaHub Board 3
- Technical Specifications
- 10 group · 38 items
- Use Cases
- Standard Meeting RoomOpen DiscussionSmart Classroom
- Professional 4K Video Camera
- Smart Audio-Video Experience
- Full HD cloud meeting experience
- Smart Collaborative Office
- High-level security certification
Technical Specifications
10 groups of 38 items, sourced from Huawei's official product pages and brochures
- Complete Unit
- 1 units
- Stylus
- 2 pcs
- Accessory cables
- 1 power cord
- Smart Screen Cast
- Optional (Type-C / Type-A)
- Ground-mounted bracket
- Optional
- Wall Mount Bracket
- Optional
- Resolution
- 4K
- Backlight Type
- D-LED
- Craftsmanship fit
- Zero Fit
- Color Gamut
- 85%NTSC
- Blue Light Filter
- Support
- Anti-glare
- Support
- Zoom lens
- 2x digital zoom
- Maximum View Angle
- Horizontal: 80° / Vertical: 50°
- Resolution
- 4K
- TV distortion
- <2%
- Smart Director
- Support
- Frequency domain
- 100Hz-20kHz
- Maximum Power
- 30W
- Stereo
- Support
- Pickup Angle
- 180°
- Pickup Distance
- 8m
- Dual Wi-Fi Module
- Support
- Frequency
- 2.4GHz + 5GHz
- NFC
- Support
- CPU
- 8 Core
- RAM
- 6GB
- Flash
- 64GB*
- Operating System
- HarmonyOS/Windows (OPS required)
- Meeting-ready
- Native meetings: Huawei Cloud Meeting SmartRooms, Huawei Cloud WeLink; Third-party meeting apps: Tencent Meeting Rooms, Feishu Rooms
- Meeting Effectiveness
- Native meetings: Huawei Cloud Meeting SmartRooms, Huawei Cloud WeLink: 1080P30fps video; Third-party meeting apps: Tencent Meeting Rooms: 1080P video, Feishu Meeting Rooms: 720P video
- Write latency
- 16ms
- Whiteboard Save Options
- Scan QR code / Email / Local / USB
- Smart Writing Recognition
- Support
- Touch Height
- 1.5mm
- Product Dimensions (mm)
- "65": 1484.5 x 91.6 x 916.1; "75": 1705.7 x 91.8 x 1040.5; "86": 1953.0 x 91.8 x 1180.6
- Package Dimensions (mm)
- "65": 1650 x 220 x 1050; "75": 1900 x 220 x 1170; "86": 2090 x 250 x 1300
- Weight (Net/Gross)
- "65": 35.5kg/43.0kg; "75": 47.8kg/57.8kg; "86": 63.0kg/74.5kg
Product Brochures & Resources
HUAWEI IdeaHub Board 3 Brochure
This catalog page lists the features and specifications for this model. View online or print to save as a PDF.
InquireIdeaHub Board 3
Share your screen size, installation method, and preferred meeting platforms. We'll provide configuration recommendations, quotes, and delivery timelines.
- Direct from manufacturer; pricing available upon request.
- Assist with verifying OPS, stand, and projector选配 configurations.
- Parameters and brochures are subject to Huawei's official documentation.
